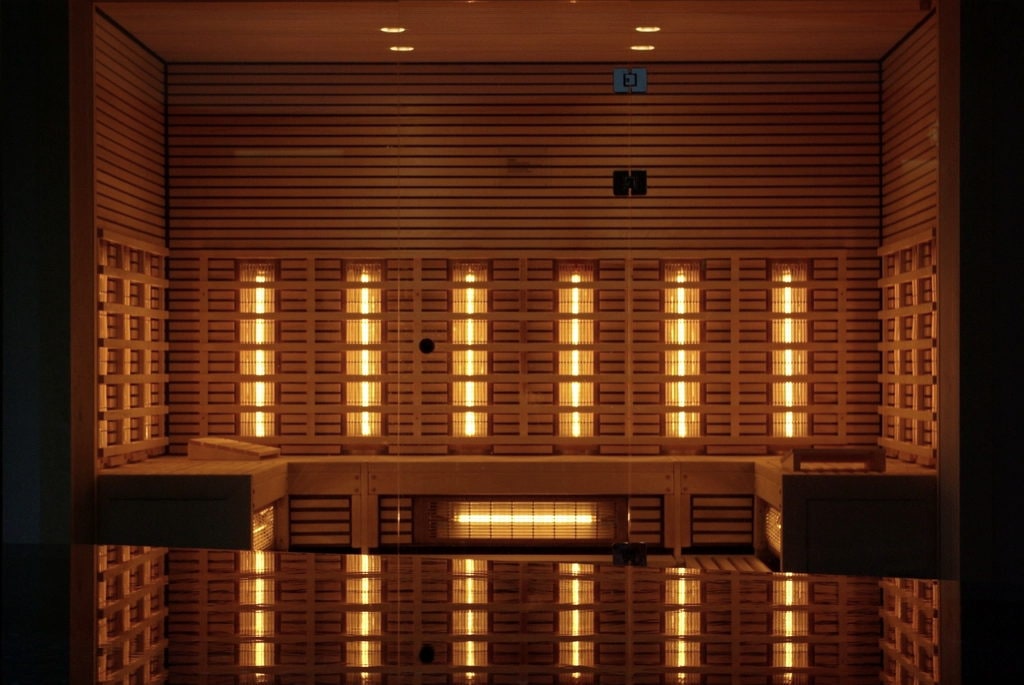

Revival Infrared Suite

Warmth without the wait.

Full-spectrum infrared cabin for apartments — low load, no plumbing, ready in fifteen minutes.

Output: 2.4 kW
Capacity: 2 people
Supply: 230V 1N~ 16 A

Request a quote

Talk to a specialist →

✓Supplied and installed by Revival in Nepal
✓Critical spares held in Kathmandu
✓2-year warranty, Revival Care available

2.4 kW · 2 peopleRequest quote

The apartment answer

Where the supply will not carry a 6 kW three-phase heater and there is no drain, infrared does most of what a client wants from a sauna: heat, sweat, and twenty quiet minutes. It runs off a 16 A single-phase circuit.

Specifications

Performance

Emitter type: Full spectrum, carbon-ceramic
Output power: 2.4 kW
Warm-up: 12–15 min
Operating range: 45–65 °C

Electrical

Voltage: 230V 1N~ 50 Hz
Current: 11 A
Control: Touch panel, integrated

Physical

External (W×D×H): 1200 × 1050 × 1950 mm
Weight: 165 kg
Warranty: 2 years

Installation requirements

What the room has to provide

Published so your architect, electrician and contractor can plan around it — before the walls close.

Electrical: Dedicated 16 A single-phase circuit with 30 mA RCD.
Clearances: 100 mm at the rear for the cable run; 600 mm at the door.
Ventilation: Room ventilation only — no dedicated extract required.
Room build: Any level, load-bearing floor. No vapour barrier or waterproofing needed.

Assembles in a day and can be dismantled if the client moves.

What Revival delivers

Every system on this site is supplied with the work that makes it function — which is the difference between buying equipment and owning a wellness environment.
